Product Details

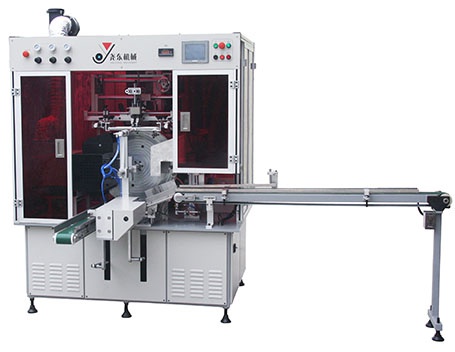

1, This machine is specially designed to print one color on the cylindrical objects, such as soft tubes, caps, jars, lipstick tubes etc..
2, Installed with internationally reputed components to drive, controlled by PLC and touch screen to ensure the operation easy and simple.
3, Equipped with various alarming device such as no bottle, low pressure, wrong position for loading, UV overheating etc..
4, Optional configuration:
-Automatic unscrambler and loader (It can save manpower and realize automatic production.)
-Servo & sensor registration system (It can combine offset printing, hot stamping and screen printing technology to print several colors)
-Automatic hot stamping device (It makes the machine with more functions)
-Varnish coating device (It makes the machine with more functions)
5, We can customize machine according to the special products.
Specifications:
|
Printing Product Size |
Diameter |
10mm-75mm |
|
Height |
20mm-220mm |
|
|
Maximum Printing Area |
230mm×170mm |
|
|
Maximum Running Speed |
75pcs/min |
|
|
UV Lamp Power |
4.4KW |
|
|
Compressed Air Pressure Requirement |
6-8bar |
|
|
Power Requirement |
380V 3Phase 50Hz |
|
|
Power Consumption |
5.8KW |
|
|
Machine Dimension(L×W×H) |
1500mm×1700mm×2100mm |
|
|
Total Weight |
1150kg |
|

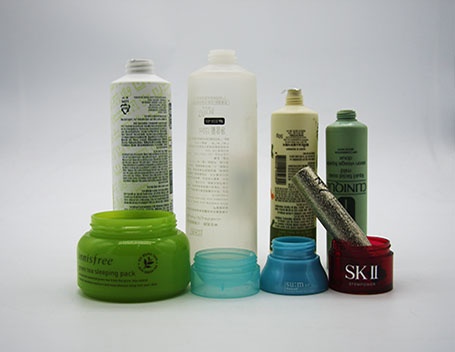

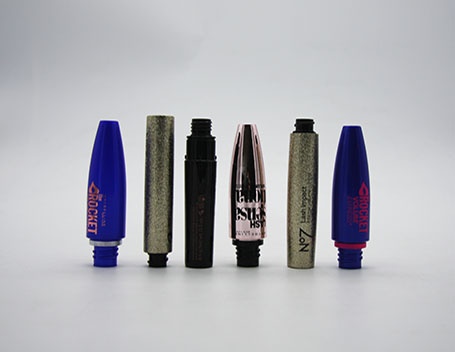

Printed samples:
